Hand out the work right on the drawing.
StructFlow Studio is the desktop app where you install our AutoCAD modules and keep them up to date. With the first module, SF Teamwork, you circle an item in the drawing, type a teammate's ID and send the task straight to them.
One app,
a growing toolbox.
Install Studio once; add modules and get updates from there. Each module does its own job inside AutoCAD.
SF Teamwork
In developmentMark it in the drawing, assign it to your team.
- 01
Circle it
Pick a beam, a column or any item in the drawing; it gets a circle and you write your note.
- 02
Assign by ID
Type the other person's number and their name appears. No friend requests, no invitations.
- 03
Your contacts, ready
People you've sent work to stay on the list, so next time you don't look up a number.
- 04
A short message
Add a sentence or two; the assignee sees what to check right on the drawing.

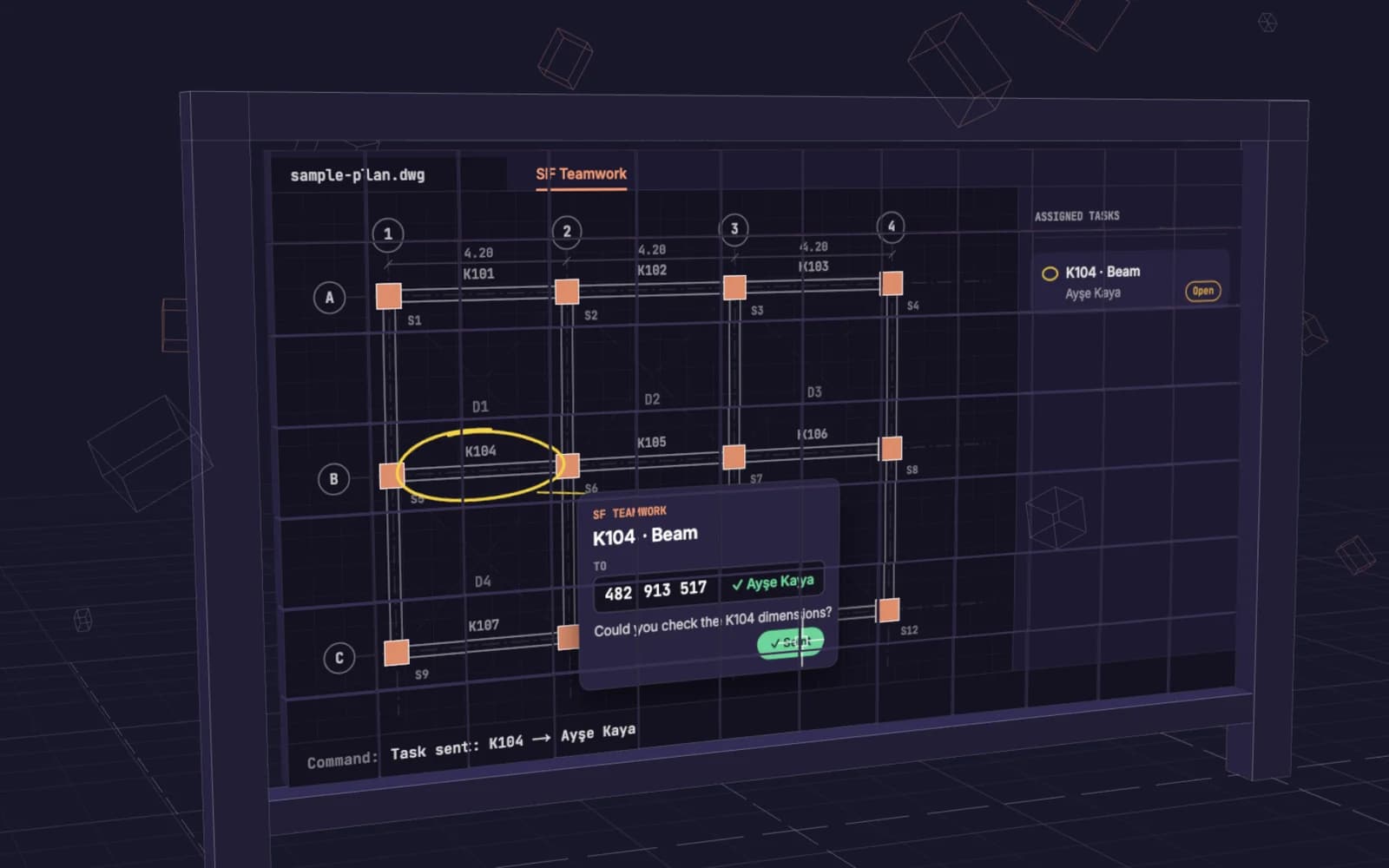

Assign task
- Item
- K104 · Beam
- To
- 482 913 517✓ Ayşe Kaya
- Note
- Could you check the K104 dimensions?
Contacts
- Ayşe Kaya
- Mert Demir
- Selin Ak
Smart Blocks
On the roadmapGroups similar blocks in the drawing and sends the odd ones out to SF Teamwork to be checked.
Drawing reading service
On the roadmapA service that interprets the drawing without AutoCAD open. Returns the result as DXF.
From install to first task
in three steps.
- 01
Install Studio
One installation. Your ID is created in Studio, and that's where you enter your details.
- 02
Add SF Teamwork
Add the module from Studio; Studio handles the AutoCAD side of the setup.
- 03
Work in the drawing
Mark, assign and follow the tasks sent to you. New versions arrive through Studio.
- Modules
- Updates
- Account
Modules
- SF TeamworkMark it in the drawing, assign it to your team.✓ Installed
- Smart BlocksGroups similar blocks in the drawing and sends the odd ones out to SF Teamwork to be checked.On the roadmap
- Drawing reading serviceA service that interprets the drawing without AutoCAD open. Returns the result as DXF.On the roadmap
StructFlow Studio
A desktop app for Windows. Your modules, your updates and your ID live here.
- Operating systemWindows
- Where it runsInside AutoCAD, as a plug-in
- Sign-upWhen you first open Studio
